CRY2624 Industrial Acoustic Imager (ATEX Version)
CRY2624 Industrial Acoustic Imager is suitable for use in explosion-proof scenarios in chemical and energy industries. The device adopts an aluminum alloy housing, which is robust and durable, and can adapt to complex and changing work environments.
Key Features
Real-time sound image display, helping to detect pressurized or vacuum leaks significantly faster compared to other previous methods.
Certified for safe use in potentially explosive environments, meeting rigorous ATEX standards for equipment in hazardous zones.
128 digital MEMS microphones provide exceptionally high sensitivity, sound resolution and detection accuracy, with real-time audiovisual display.
By activating the leak measurement function, the camera continuously displays the amount of leaks and losses, as well as the loss level.
Applications
The CRY2624 is specially designed for use in challenging industrial environments where safety is critical.

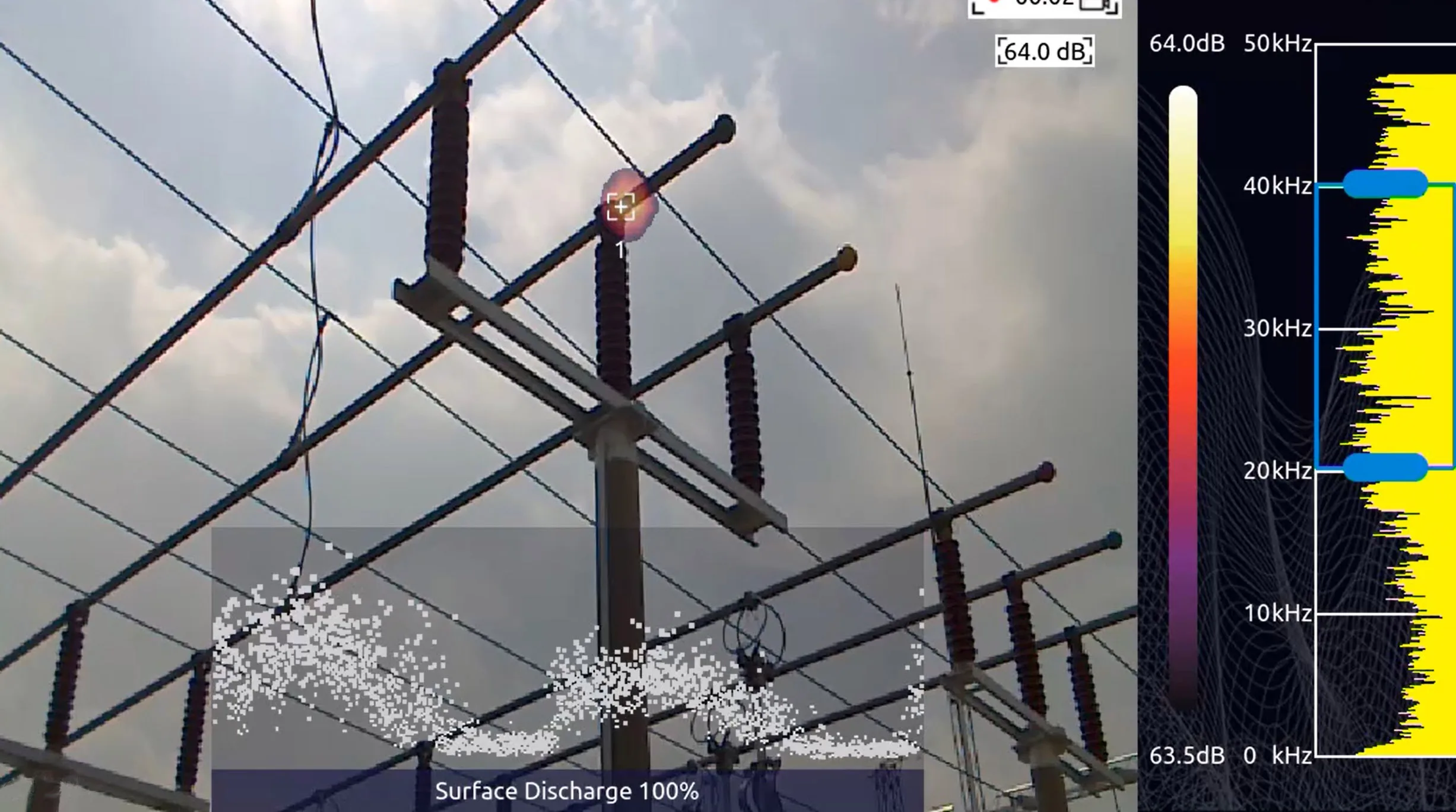

PD Detection and Type Identification
Partial discharges can be detected before more serious failures occur, even before a thermal camera detects them.
Gas Leak Detection
When a leak or vacuum leak occurs in any pressurized gas, the turbulence created by gas flow emits acoustic energy, which covers the audible domain and ultrasonic frequency band.
Technical Specifications
Learn about the technical details of the CRY2624 Industrial Acoustic Imager (ATEX Version).
Acoustic Specifications
- Microphone Array:128 MEMS channels
- Effective Bandwidth:2kHz-48kHz
- Dynamic Range:-40dB~100dB
- Number of Digits:24 Bit
Detection
- Sound Image FOV:62°
- Sound Image Frame Rate:At least 25 FPS
- Leak Detection Rate:10m 5bar 0.92ml/s
- Detection Distances:0.3m~120m

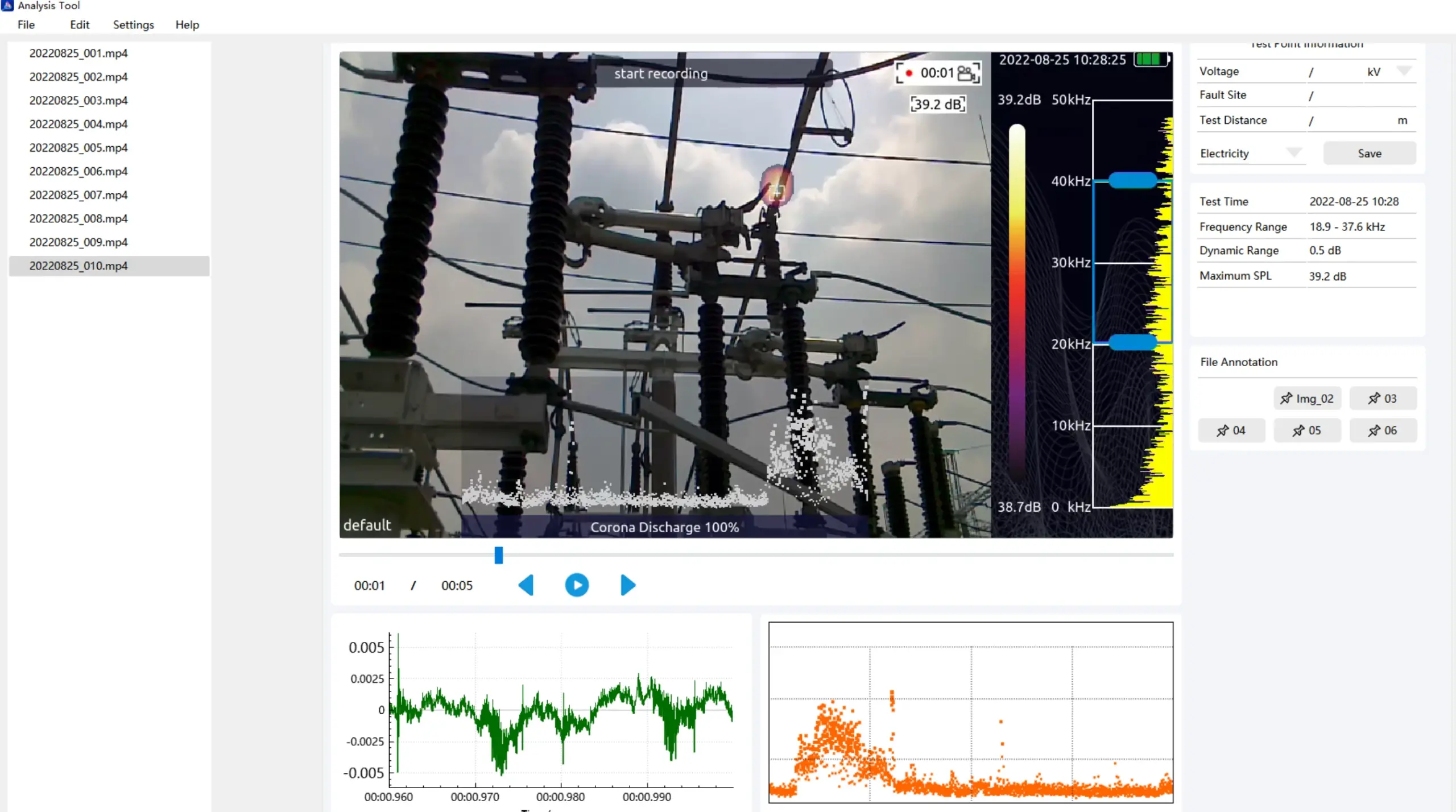

Analysis and Reports
Processing and recording based on data models, waveforms, spectra and spectrograms is supported by CRYSOUND analysis reporting software, generating editable protocols compatible with ISO 50001 in Excel format.
- Automatic generation of detailed reports
- Real-time spectrum analysis
- Compatibility with international standards
- Data export in multiple formats
Download Resources
Access brochures, manuals and other resources related to the CRY2624.
Complete specifications and detailed information about the CRY2624 Industrial Acoustic Imager.
Complete guide for operation, maintenance and troubleshooting for the CRY2624.
Official ATEX certification documentation for use in potentially explosive environments.
Frequently Asked Questions
Answers to the most common questions about the CRY2624 Industrial Acoustic Imager.
Ready to revolutionize your leak detection in ATEX environments?
Contact us today for a demonstration of the CRY2624 Industrial Acoustic Imager.
