CRY2626G Acoustic Imaging Camera for Drones

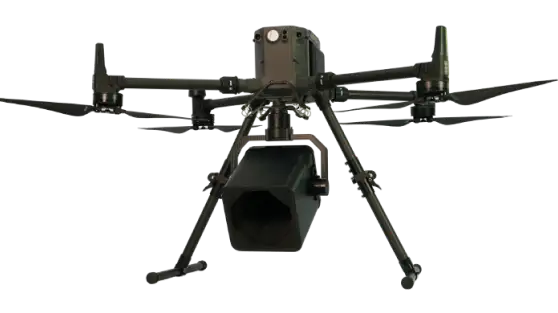

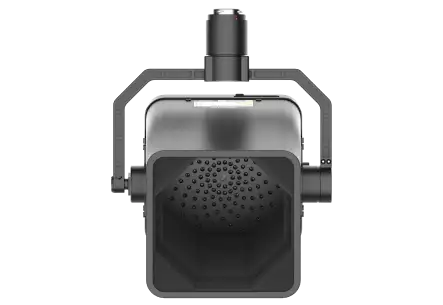

The CRY2626G is the world's first acoustic imaging camera designed for drones, ideal for detecting leaks in pressurized systems and partial discharges in electrical transmission lines. It uses a microphone array with beamforming to locate and overlay acoustic data onto high-resolution video images. Robust and lightweight body, easy mounting via SKYPORT, photo/video modes and fast data export.
Detects discharges and leaks from kilometers away
Cutting-edge solution for aerial inspections of transmission lines and gas pipelines. Detects and identifies partial discharges and leaks over long distances, with mobility and flexibility to reach hard-to-access areas. Real-time visualization and high precision reduce risks and increase maintenance efficiency.
Advanced System Design

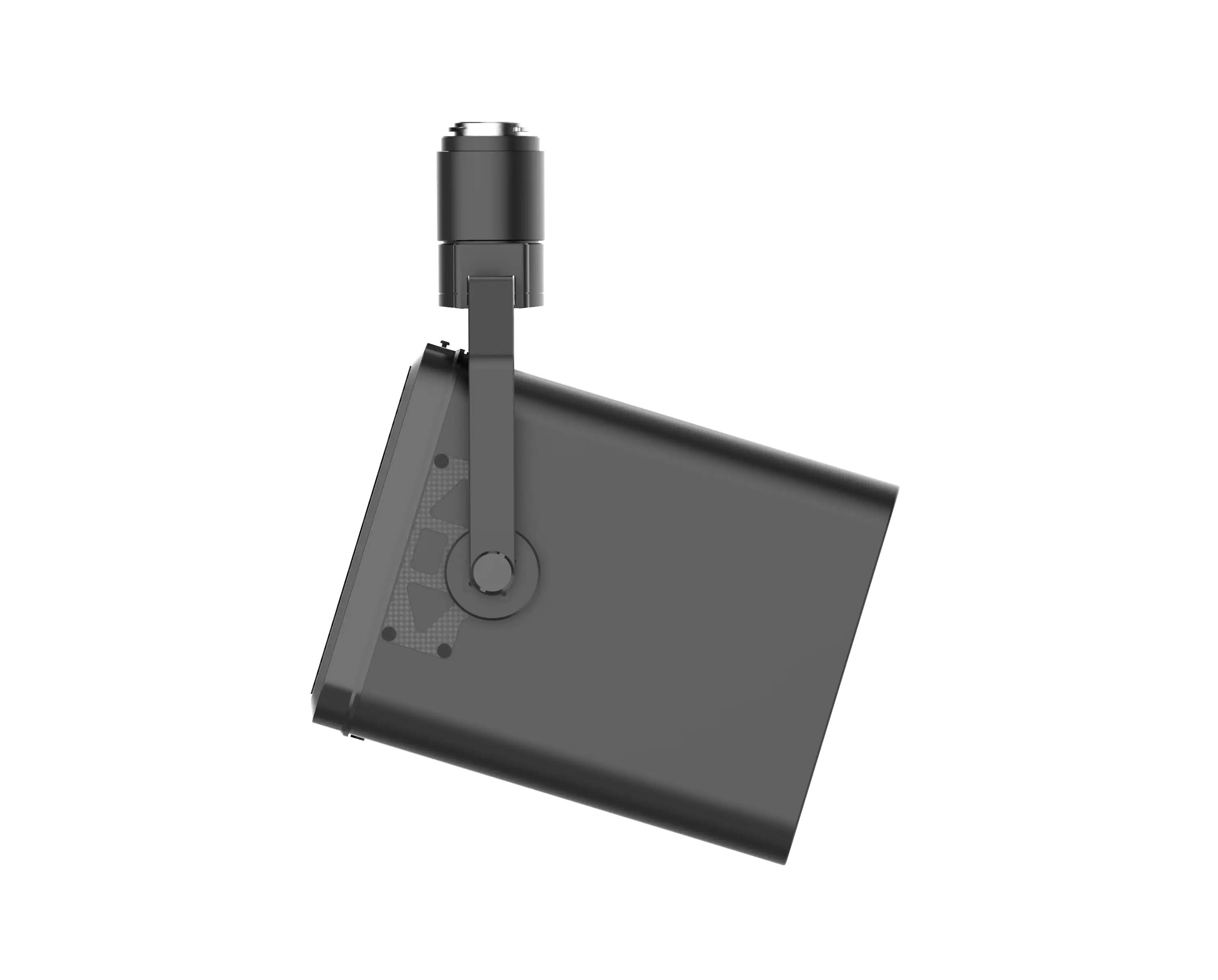

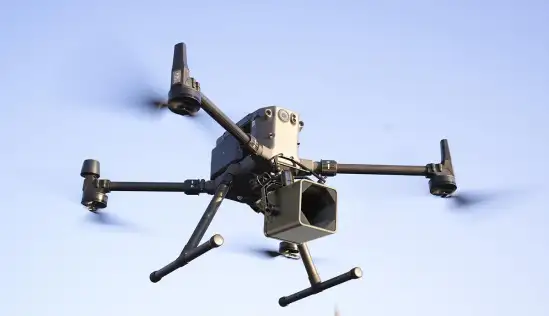

The CRY2626G combines advanced acoustic sensors and intelligent algorithms to accurately detect and visualize leaks and discharges. The two-axis gimbal ensures stability and full control, even in challenging conditions.
Advanced Noise Suppression
Three layers of sound-absorbing material and the HyperVision algorithm isolate the target sound and block propeller noise, ensuring clean acoustic images even in noisy environments.
Instant Visualization on Controller

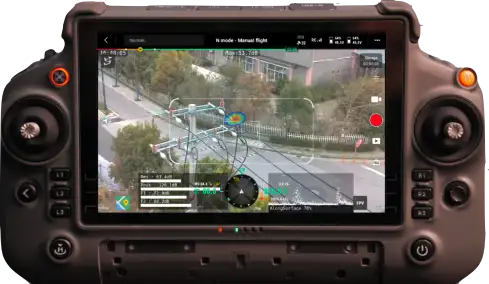

Inspection results transmitted in real-time to the drone controller, enabling quick and precise decisions during flight.
Rapid Deployment and Portability

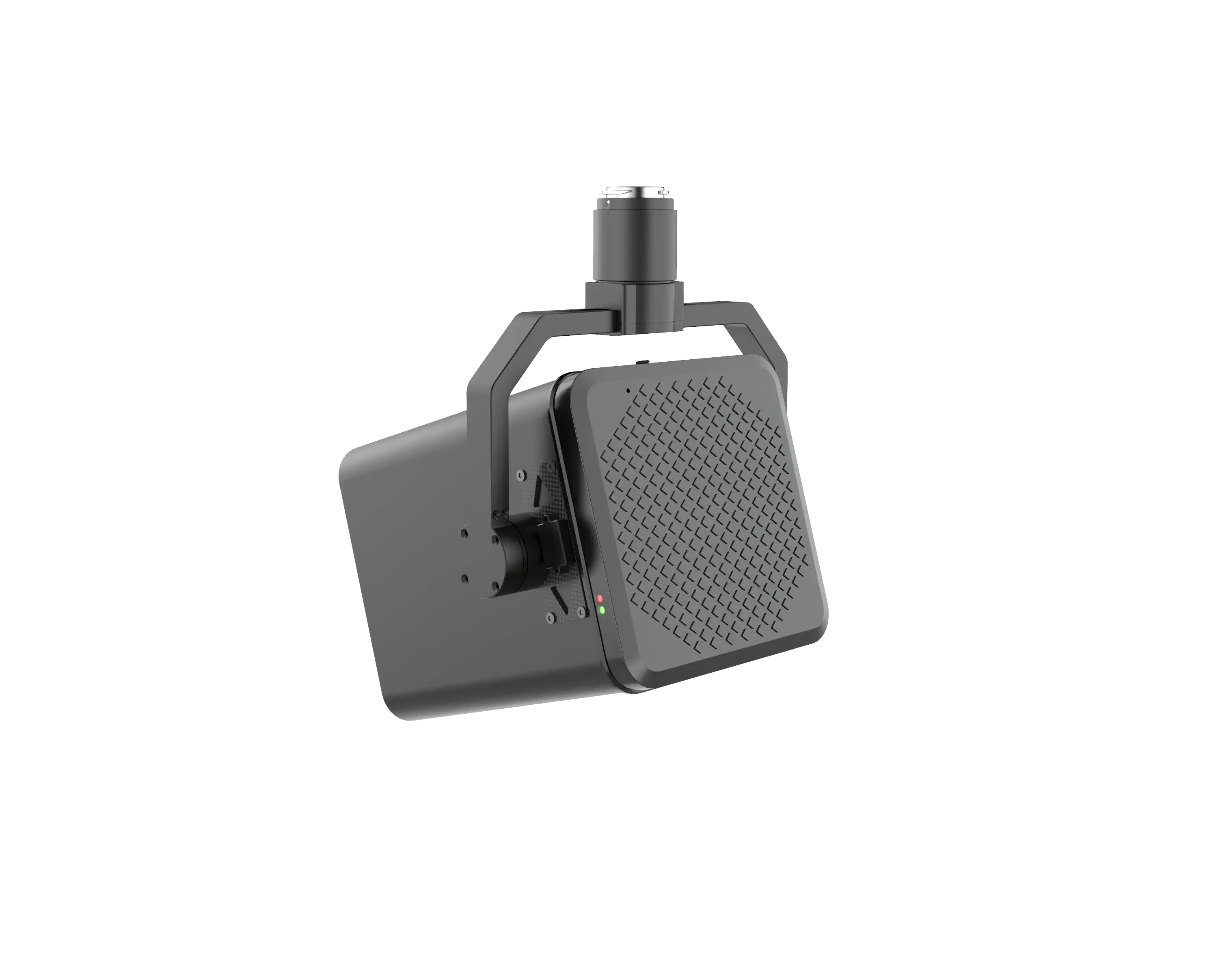

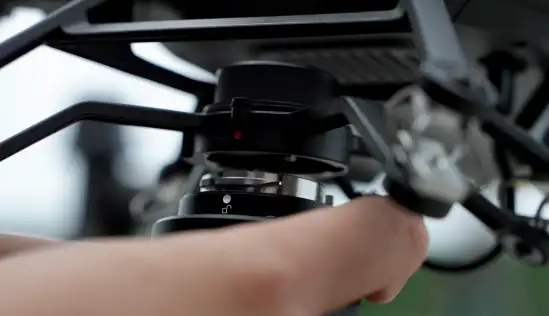

SKYPORT integration allows assembly and takeoff in less than one minute. Includes wheeled transport case for easy field use.
Advanced Reporting Software

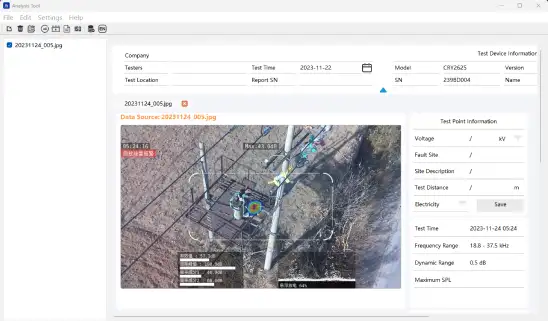

Dedicated software allows for detailed analysis, report generation, video playback, and calculation of economic losses, optimizing the entire inspection workflow.
Especificações Técnicas
| Acoustic Specifications | |
|---|---|
| Number of Microphones | 128 MEMS channels |
| Frequency range | 2 kHz – 48 kHz |
| Test sound pressure level range | 28dB~132dB |
| Acoustic cloud maps / imager view | 62° |
| Minimum frame rate for acoustic cloud map | 25FPS |
| Test Distance | 0.5m~30m |
| Imager | |
| Imager FOV | 62° |
| Imager focal length | 3.04mm fixed focal length |
| Imager pixel | 8 million pixel |
| Storage | |
| Internal storage | 8GB |
| External storage | TF memory card, at least 64G, expandable to 256G |
| Data storage format | .jpg (Picture), .mp4 (Video) and .wav (Recording) |
| Video length | 5mins |
| Digital export | TF Card |
| Operating Environment | |
| Operating temperature | -20℃ ~ +50℃, 10%-95% No condensation |
| Storage temperature | -20℃ ~ +60℃ |
| Altitude | Less than 5000m |
| Gimbal | |
| Pitch | -90°~0° (horizontal line 0°) |
| Course | -90°~+90° (0° directly in front of the drone) |
| Resolution | 1° |
| Power | |
| Voltage | Same as SKYPORT, DC12V |
| Power interface | Same as SKYPORT |
| Power consumption | 10W |
| Device | |
| Protection Class | IP42 |
| Overall equipment dimensions | Fold: 210×230×260mm, Spread: 340×232×167mm |
| Weight | 1400g |
| Duration of flight | 30min |
| Installation | SKYPORT V2 |
| Warranty | 2 years |
| Self-diagnostic notification | Array-health test function to identify when microphone array needs attention |
| Drones (optional) | |
| Model | DJI M300 RTK, DJI M350 RTK |
| Language | |
| Language | Chinese, English |
| Software | |
| Protocol | DJI PSDK Protocol |
| Report types | Gas/Electricity, ISO 50001-compliant |
| Analysis | PRPD Spectrum |
